您當前的位置：首頁 >> 機床附件和工裝夾具 >> 彈簧夾頭及刀柄 >> PARLEC >> PARLEC >> PARLEC ER彈簧夾頭和刀柄

PARLEC ER彈簧夾頭和刀柄

PARLEC ER彈簧夾頭和刀柄

特點：
·合金鋼達到持久的使用壽命
·淬火至洛氏硬度HRC52-56，防止彈簧夾頭螺紋損壞
·刀柄座錐度 ≤ 0.0002"
·可裝德國標準6499-B的夾頭
·Parsymmetry設計達到高速操作
·通過主軸的冷卻能力

套裝包括：
10件ER-16刀柄套裝
·每件范圍如下:0.0197"-0.0394",0.0390"-0.0787",
0.1969"-0.2362",0.2362"-0.2756",0.2756"-0.3150",
0.3150"-0.3543"和0.3543"-0.3937"
18件ER-32刀柄套裝
·每件范圍如下:0.1181"-0.1575",0.1575"-0.1772",
0.1575"-0.1969",0.1969"-0.2362",0.2362"-0.2756",
0.2756"-0.3150",0.3150"-0.3543",0.3543"-0.3937",
0.3937"-0.4331",0.4331"-0.4724",0.4724"-0.5118",
0.5118"-0.5512",0.5512"-0.5906",0.5906"-0.6299",
0.6299"-0.6693",0.6693"-0.7087",0.7087"-0.7480"
和0.7480"-0.7874"

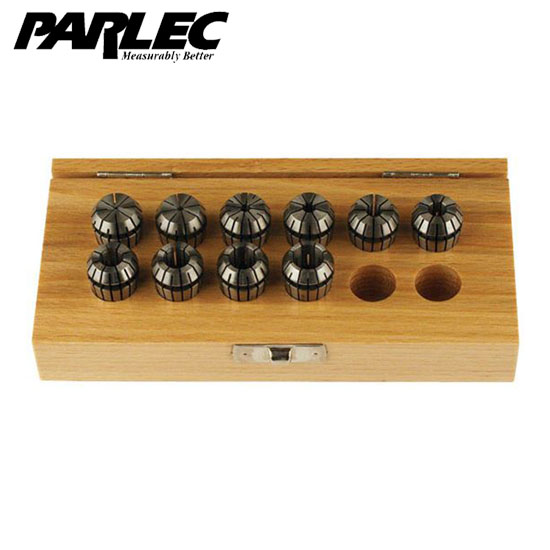

10件ER-16刀柄套裝
0.5mm-10mm
型號：ER16-S010
訂貨號：#7-820-775

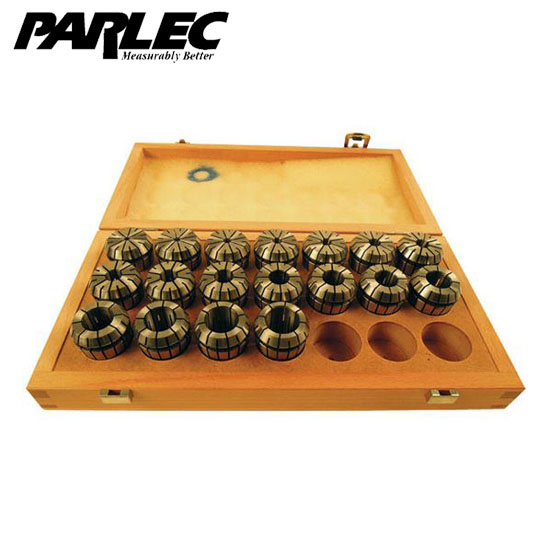

18件ER-32刀柄套裝
2mm-20mm
型號：ER32-S018
訂貨號：67-820-875

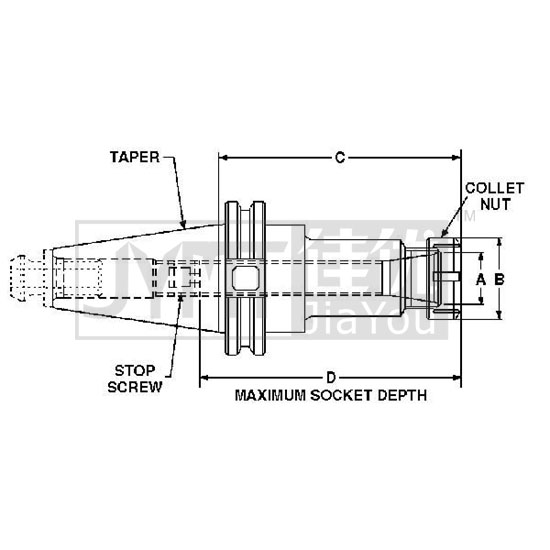

貨號	型號	錐度	夾頭尺寸	加工范圍	夾頭范圍	探出長度	最大插口深度	價格(1件起訂)			購買
								1	1	1

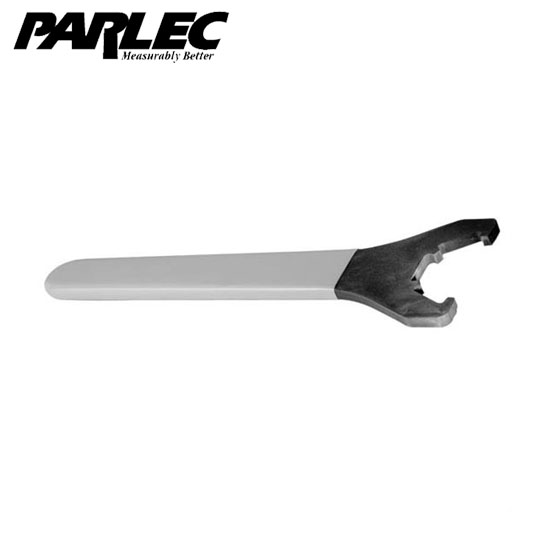

67-820-899	32ERNW		ER-32		ER-32 Fixed Spanner			855.16	855.16	855.16
67-820-875	ER32-S018		ER-32		.0787 - .7874" (2 - 20mm)			7562.01	7562.01	7562.01
67-820-864	ER32-0787		ER-32		.7480 - .7874" (19 - 20mm)			417.04	417.04	417.04
67-820-862	ER32-0748		ER-32		.7087 - .7480" (18 - 19mm)			417.04	417.04	417.04
67-820-860	ER32-0708		ER-32		.6693 - .7087" (17 - 18mm)			417.04	417.04	417.04
67-820-858	ER32-0687		ER-32		.6480 - .6870" (11/16")			417.04	417.04	417.04
67-820-856	ER32-0669		ER-32		.6299 - .6693" (16 - 17mm)			417.04	417.04	417.04
67-820-854	ER32-0630		ER-32		.5906 - .6299" (15 - 16mm)			417.04	417.04	417.04
67-820-852	ER32-0625		ER-32		.5863 - .6250" (5/8")			417.04	417.04	417.04
67-820-850	ER32-0590		ER-32		.5512 - .5906" (14 - 15mm)			417.04	417.04	417.04
67-820-848	ER32-0562		ER-32		.5230 - .5620" (9/16")			417.04	417.04	417.04
67-820-846	ER32-0551		ER-32		.5118 - .5512" (13 - 14mm)			417.04	417.04	417.04
67-820-844	ER32-0511		ER-32		.4724 - .5118" (12 - 13mm)			417.04	417.04	417.04
67-820-842	ER32-0500		ER-32		.4601 - .5000" (1/2")			417.04	417.04	417.04
67-820-840	ER32-0472		ER-32		.4331 - .4724" (11 - 12mm)			417.04	417.04	417.04
67-820-838	ER32-0433		ER-32		.3937 - .4331" (10 - 11mm)			417.04	417.04	417.04
67-820-836	ER32-0393		ER-32		.3543 - .3937" (9 - 10mm)			417.04	417.04	417.04
67-820-834	ER32-0375		ER-32		.3306 - .3750" (3/8")			417.04	417.04	417.04
67-820-832	ER32-0354		ER-32		.3150 - .3543" (8 - 9mm)			417.04	417.04	417.04
67-820-830	ER32-0343		ER-32		.3040 - .3430" (11/32")			417.04	417.04	417.04
67-820-826	ER32-0315		ER-32		.2756 - .3150" (7 - 8mm)			417.04	417.04	417.04
67-820-824	ER32-0312		ER-32		.2730 - .3120" (5/16")			417.04	417.04	417.04
67-820-820	ER32-0281		ER-32		.2420 - .2810" (9/32")			417.04	417.04	417.04
67-820-818	ER32-0275		ER-32		.2362 - .2756" (6 - 7mm)			417.04	417.04	417.04
67-820-814	ER32-0250		ER-32		.2101 - .2500" (1/4")			417.04	417.04	417.04
67-820-812	ER32-0236		ER-32		.1969 - .2362" (5 - 6mm)			417.04	417.04	417.04
67-820-810	ER32-0196		ER-32		.1575 - .1969" (4 - 5mm)			417.04	417.04	417.04
67-820-808	ER32-0187		ER-32		.1480 - .1870" (3/16")			417.04	417.04	417.04
67-820-806	ER32-0157		ER-32		.1181 - .1575" (3 - 4mm)			417.04	417.04	417.04

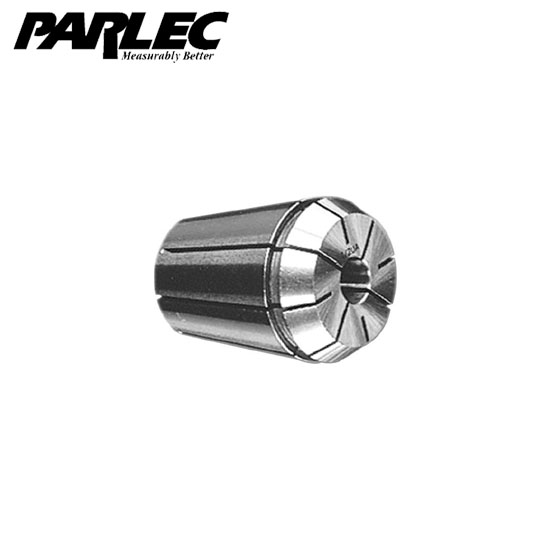

67-820-802	ER32-0118		ER-32		.0787 - .1181" (2 - 3mm)			417.04	417.04	417.04

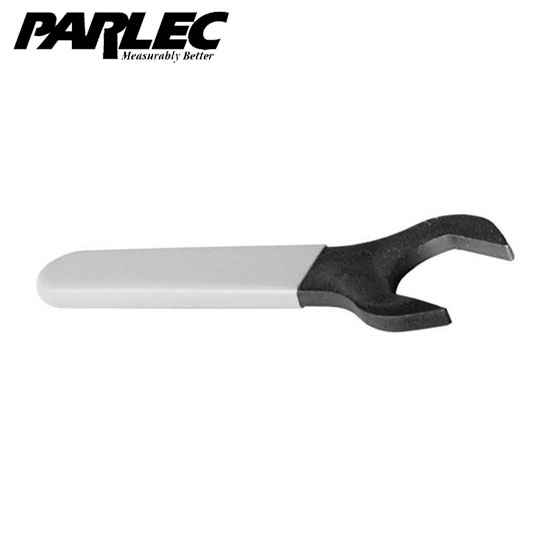

67-820-799	ECN20W		ER-16		ER-16 1" Open End			791.02	791.02	791.02
67-820-798	40ERNW		ER-40		ER-40 Fixed Spanner			819.61	819.61	819.61
67-820-797	25ERNW		ER-25		ER-25 Fixed Spanner			622.65	622.65	622.65
67-820-796	20ERHNW		ER-20		ER-20 1.18" HEX			695.07	695.07	695.07
67-820-795	300CNW		ER-11		ER-11 11/16" HEX			336.18	336.18	336.18
67-820-775	ER16-S010		ER-16		.0197 - .3937" (0.5 - 10mm)			3915.08	3915.08	3915.08
67-820-736	ER16-0393		ER-16		.3543 - .3937" (9 - 10mm)			318.52	318.52	318.52
67-820-734	ER16-0375		ER-16		.3306 - .3750" (3/8")			318.52	318.52	318.52
67-820-732	ER16-0354		ER-16		.3150 - .3543" (8 - 9mm)			318.52	318.52	318.52
67-820-730	ER16-0343		ER-16		.3040 - .3430" (11/32")			318.52	318.52	318.52
67-820-728	ER16-0334		ER-16		.2950 - .3340" (7.5 - 8.5mm)			318.52	318.52	318.52
67-820-726	ER16-0315		ER-16		.2756 - .3150" (7 - 8mm)			318.52	318.52	318.52
67-820-724	ER16-0312		ER-16		.2730 - .3120" (5/16")			318.52	318.52	318.52
67-820-722	ER16-0295		ER-16		.2550 - .2950" (6.5 - 7.5mm)			318.52	318.52	318.52
67-820-720	ER16-0281		ER-16		.2420 - .2810" (9/32")			318.52	318.52	318.52
67-820-718	ER16-0275		ER-16		.2362 - .2756" (6 - 7mm)			318.52	318.52	318.52
67-820-716	ER16-0255		ER-16		.2170 - .2559" (5.5 - 6.5mm)			318.52	318.52	318.52
67-820-714	ER16-0250		ER-16		.2101 - .2500" (1/4")			318.52	318.52	318.52
67-820-712	ER16-0236		ER-16		.1969 - .2362" (5 - 6mm)			318.52	318.52	318.52
67-820-710	ER16-0196		ER-16		.1575 - .1969" (4 - 5mm)			318.52	318.52	318.52
67-820-708	ER16-0177		ER-16		.1575 - .1772" (4 - 4.5mm)			318.52	318.52	318.52
67-820-706	ER16-0157		ER-16		.1181 - .1575" (3 - 4mm)			318.52	318.52	318.52
67-820-704	ER16-0118		ER-16		.0787 - .1181" (2 - 3mm)			318.52	318.52	318.52
67-820-702	ER16-0078		ER-16		.0390 - .0787" (1 - 2mm)			398.69	398.69	398.69
67-820-700	ER16-0039		ER-16		.0197"- .0394" (.5 - 1mm)			398.69	398.69	398.69
67-820-027	C50-32ERF600	CAT 50	ER-32	1.97"	.078" - .787" (2 - 20mm)	6.00"	3.88"	4003.60	4003.60	4003.60
67-820-023	C50-32ERF400	CAT 50	ER-32	1.97"	.078" - .787" (2 - 20mm)	4.00"	3.88"	3435.61	3435.61	3435.61
67-820-022	C50-16ERF600	CAT 50	ER-16	1.11"	.020" - .393" (.5 - 10mm)	6.00"	2.50"	3625.57	3625.57	3625.57
67-820-021	C50-16ERF400	CAT 50	ER-16	1.11"	.020" - .393" (.5 - 10mm)	4.00"	2.50"	3353.37	3353.37	3353.37
67-820-019	C40-40ERF400	CAT 40	ER-40	1.97"	.118" - 1.181" (3 - 30mm)	4.12"	4.00"	2306.94	2306.94	2306.94
67-820-018	C40-32ERF400	CAT 40	ER-32	1.97"	.078" - .787" (2 - 20mm)	4.00"	3.88"	2442.99	2442.99	2442.99
67-820-017	C40-32ERF300	CAT 40	ER-32	1.97"	.078" - .787" (2 - 20mm)	3.00"	3.88"	2365.49	2365.49	2365.49
67-820-016	C40-25ERF400	CAT 40	ER-25	1.67"	.039" - .630" (1 - 16mm)	4.00"	4.00"	2416.04	2416.04	2416.04
67-820-014	C40-20ERF400	CAT 40	ER-20	1.34"	.039" - .511" (1 - 13mm)	4.00"	3.88"	2277.92	2277.92	2277.92
67-820-013	C40-20ERF300	CAT 40	ER-20	1.34"	.039" - .511" (1 - 13mm)	3.00"	2.43"	2208.51	2208.51	2208.51
67-820-012	C40-16ERF500	CAT 40	ER-16	1.11"	.020" - .393" (.5 - 10mm)	5.00"	2.00"	2488.12	2488.12	2488.12
67-820-011	C40-16ERF400	CAT 40	ER-16	1.11"	.020" - .393" (.5 - 10mm)	4.00"	2.00"	2262.42	2262.42	2262.42
67-820-009	C40-16ERF300	CAT 40	ER-16	1.11"	.020" - .393" (.5 - 10mm)	3.00"	2.00"	2200.41	2200.41	2200.41
67-820-008	C40-16ERF250	CAT 40	ER-16	1.11"	.020" - .393" (.5 - 10mm)	2.50"	2.43"	2146.51	2146.51	2146.51
67-820-004	C40-11ERF400	CAT 40	ER-11	0.75"	.020" - .275" (.5 - 7mm)	4.00"	2.25"	2440.93	2440.93	2440.93
67-820-003	C40-11ERF250	CAT 40	ER-11	0.75"	.020" - .275" (.5 - 7mm)	2.50"	2.25"	2395.11	2395.11	2395.11
67-820-002	B40-32ERF400	BT 40	ER-32	1.97"	.078" - .787" (2 - 20mm)	4.00"	3.88"	2455.13	2455.13	2455.13
67-820-001	B40-16ERF300	BT 40	ER-16	1.11"	.020" - .393" (.5 - 10mm)	3.00"	2.00"	2189.65	2189.65	2189.65
